N. articolo: ov-fotovoltaico-aiko-a485-mce54dw-2006400009
AIKO A485-MCE54Dw
€92.82
Disponibile
1
Specifiche tecniche
| Peso [Kg]24.20 | Altezza [Mm]30 |
| Colore CorniceNero | Larghezza [Mm]1,134 |
| Lunghezza [Mm]1,762 | Numero Di Celle108 |
| Colore - Backsheetbianco | Potenza/ Area [ Wp/M²]242.73 |
| Tecnologia Dei Modulihalf-cut | Tipo Di Connettore C CEVO2A |
| Tecnologia Delle CelleABC | Potenza S T C ( Pmpp) [ Wp]485 |
| Efficienza Del Modulo [%]24.30 | Garanzia Di Prodotto (Anni)15 |
| Tensione Massima Di Sistema [ V]1,500 | Lunghezza Del Cavo Di Collegamento [M]1.20 |
| Massimo Carico Di Progetto Trazione [ N/M²]1,600 | Massimo Carico Di Progetto Compressione [ N/M²]3,600 |
| Intensità Della Corrente Del Fusibile Di Stringa [ A]30 |
Product details

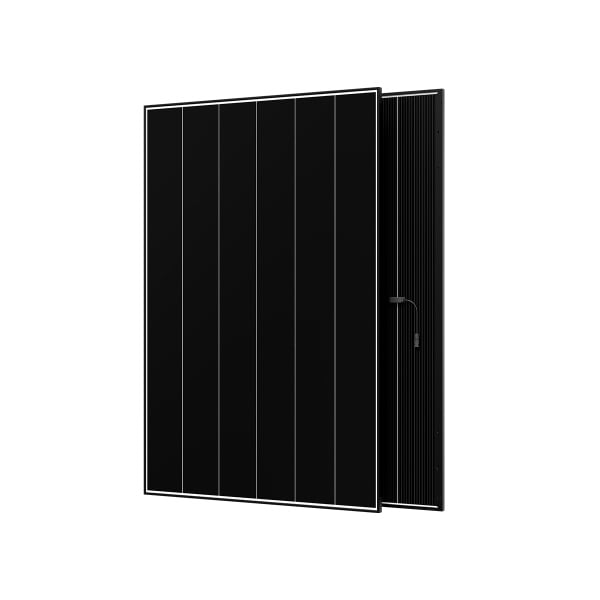

The AIKO MCE54-DW is a high-performance glass-glass solar module from the Neostar 3P+ series with an output of 465–495 W and an efficiency of up to 24.8%. It uses innovative N-type ABC cell technology, which ensures maximum energy yield, low power losses in partial shade, and excellent temperature stability. Thanks to its robust double-glass construction, premium warranty (up to 30 years performance warranty), and elegant design, it is ideal for durable and aesthetic PV systems.
Modul-Technology: ABC
ABC (All-Back-Contact) technology relocates all electrical contacts to the rear of the solar cell, leaving the front completely free of metallic conductors and allowing more light to be absorbed. This reduces internal resistance, increases efficiency, and improves low-light performance and temperature stability.
Quality:
AIKO is considered a premium manufacturer in the photovoltaic industry and impresses with high efficiency, innovative ABC technology, and solid workmanship. The modules offer long warranties (up to 25 years product warranty and 30 years performance warranty), low degradation, and are designed for extreme weather conditions.
Warranty
The AIKO MAH54-Dw offers a 15-year product warranty and a 30-year linear performance warranty. Degradation is very low: maximum ≤1% in the first year and then ≤0.35% per year, ensuring high energy yields in the long term.
